Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
LC3200

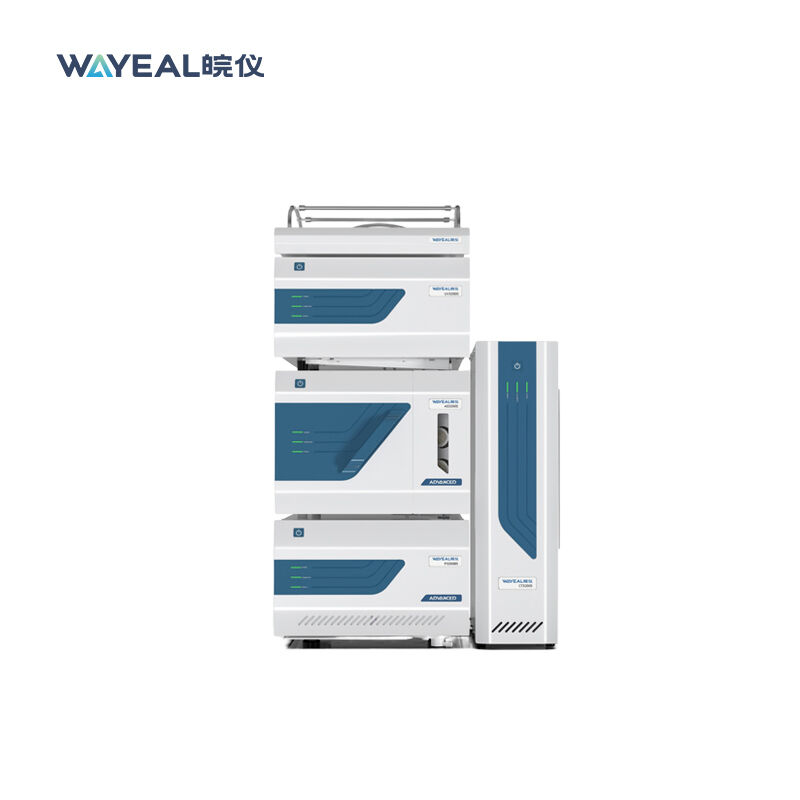

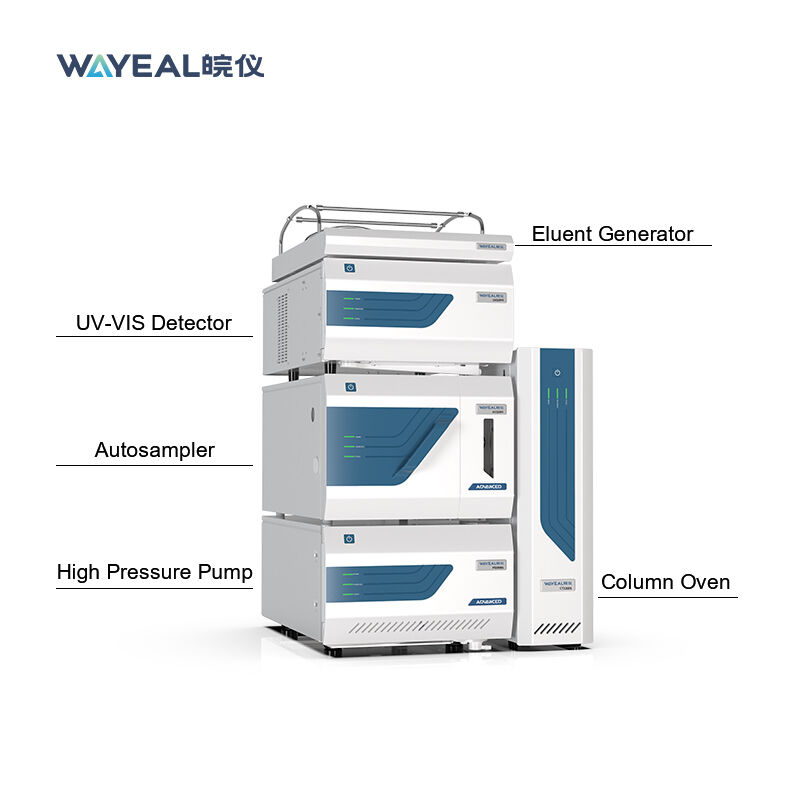

High Pressure Pump and Column Oven Equipped High Performance Liquid Chromatography Instrument in Medince Analysis
Description of Liquid Chromatography Instrument
High-performance liquid chromatography (HPLC) is an important analytical method commonly used to separate and quantify components of liquid samples. In this technique, a solution (first phase) is pumped through a column that contains a packing of small porous particles with a second phase bound to the surface. The different solubilities of the sample components in the two phases cause the components to move through the column with different average velocities, thus creating a separation of these components. The pumped solution is called the mobile phase, while the phase in the column is called the stationary phase.
Parameters of Liquid Chromatography Instrument
| High Pressure Pump and Column Oven Equipped High Performance Liquid Chromatography Instrument in Medince Analysis | |
| Pump | |
| Gradient | Quadratic Low Pressure |
| Flow Rate Range | 0-10.0000mL/min |
| Min Injection Unit | 0.0001mL/min |
| Flow Rate Error | ±0.2% |
| Flow Rate Repeatability | ≤ 0.08% RSD |
| Gradient Stability | ＜ 0.5% RSD |
| Max Operating Pressure | 42MPa |
| In-line Degassing | |
| Column Oven | |
| Temperature Range | 4 ℃ ~ 85 ℃ |
| Temperature Stability | ≤±0.02 ℃ |
| Autosampler | |
| Sampling Volume | 0.1-20.0uL (in 0.1μL increments) |
| Sample Capacity | 120 vials, 2ml vial |
| Linearity | r ＞ 0.9999 |
| Cross-contamination | ＜ 0.002% |
| Sampling Error | ±0.2μL (sampling volume 10μL) |
| Sampling Repeatability | ＜ 0.3% RSD |
| Injection Speed | 15s |
| UV Detector | |
| Wavelength Range | 188 - 900 nm (optional tungsten lamp) |
| Wavelength Error | ≤ ±0.5 nm |
| Wavelength Repeatability | ≤ ±0.1 nm |
| Baseline Noise | 0.8 × 10-5 AU |
| Drift | 1.0 × 10-4 AU/h |
| Linearity | 2.5AU |
Product Performance
1. Two optional modes: binary high pressure and quaternary low pressure
2. Wavelength scaning: the absorption spectrum can be scanned in the entire range of the light source.
3. A variety of detectors available, such as DAD, ELSD and FLD.
4. Dual-wavelength detection, two wavelengths canbe detected at the same time.
Product Application
