Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
LC3200

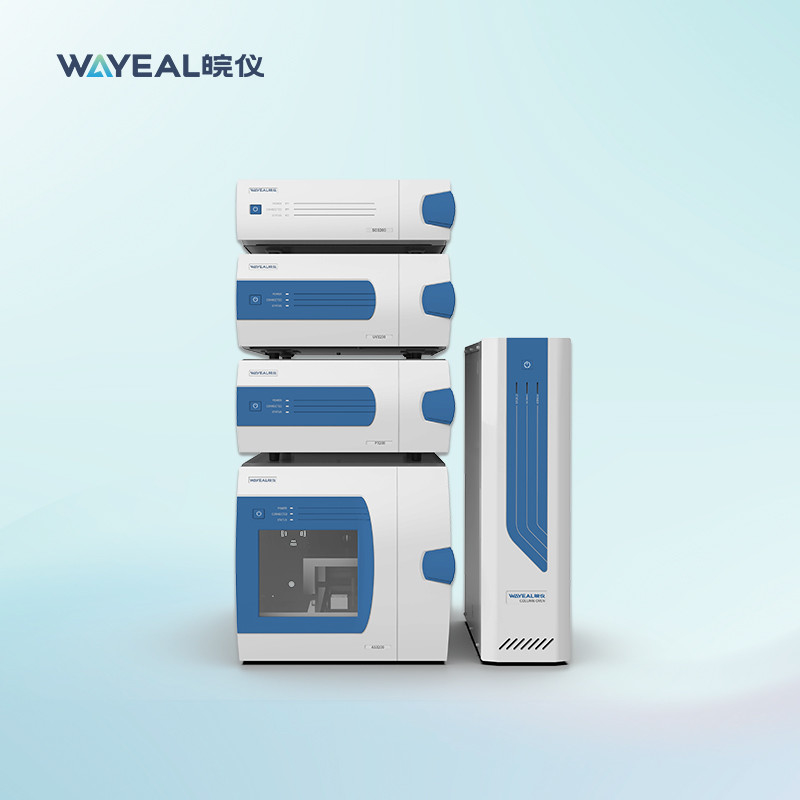

42MPa Isocratic High Pressure HPLC Liquid Chromatography System in Pharmaceutical Industry
Description of HPLC Liquid Chromatography Instrument
High-performance liquid chromatography (HPLC) is a technique in analytical chemistry used to separate the components in a mixture, and to identify and quantify each component. It was initially discovered as an analytical technique in the early twentieth century and was first used to separate colored compounds.
Parameters of HPLC Liquid Chromatography Instrument
| Manufacturer: | Wayeal |
| Product Name: | Liquid Chromatography Instrument |
| Working Power Supply | 220V, 50Hz |
| Ambient Temperature | 10~40°C |
| Relative Humidity | 20~85% |
| Qualitative Repeatability | ≤0.2% |
| Quantitative Repeatability | ≤0.4% |
| High Pressure Constant Flow Pump | |
| Flow Rate Range | 0.001~10.000mL/min |
| Setting Step | 0.001mL/min |
| Pressure Range | 0~42MPa |
| Pressure Pulsation | 0.1MPa |
| Flow Rate Set Error | ±0.2% |
| Flow Rate Stability | RSD≤0.06% |
| Gradient Error | ±1% |
| Column Oven | |
| Temperature Control Range | 4~85°C |
| Temperature Stability | ±0.02°C |
| Temperature Setting Resolution | 0.1°C |
| Autosampler | |
| Injection Volume Repeatability | ＜0.5%RSD |
| Linearity | ＞0.9999 |
| Cross Contamination | ＜0.002% |
| Injection Volume Accuracy Error | ±1% |
| Sample Positions | 120 |
| Injection Volume | 1~100μL |
| UV Detector | |
| Baseline Noise | ≤2.0*10-6Au |
| Baseline Drift | ≤1*10-5Au/h |
| Mini Detection Concentration | ≤3.0*10-9g/mL (naphthalene/methanol) |
| Spectral Range | 188~900nm |
| Wavelength Error | ≤±0.1nm |
| Wavelength Repeatability | ≤±0.1nm |
| Linearity Range | ≥103 |
| DA Detector | |
| Baseline Noise | ≤4*10-5Au |
| Baseline Drift | ≤3*10-5Au/h |
| Mini Detection Concentration | ≤2*10-8g/mL |
| Spectral Range | 190~800nm |
| Wavelength Error | ≤±0.1nm |
| Wavelength Repeatability | ≤±0.1nm |
| Linearity Range | ≥ 104 |
| ELS Detector | |
| Baseline Noise | ≤ 0.0037mV |
| Baseline Drift | ≤ 0.0026mV/30min |
| Evaporation Gas Flow Range | (0 ~ 3) SLM |
| Atomization Temperature Range | Room temperature ~ 90℃ |
| Evaporation Temperature Range | Room temperature～110℃ |
| Detection Chamber Temperature Range | Room temperature～60℃ |
| Input Air Pressure | (4 ~ 7) bar |
| FL Detector | |
| Baseline Noise | ≤ 5×10-6 FU |
| Baseline Drift | ≤ 2 × 10-5 FU/30min |
| Spectral Range | (200 ~ 650) nm |
| Wavelength Error | ± 0.1 nm |
| Linearity Range | ≥ 104 |
| RI Detector | |
| Detection Range | 0.25 ~ 512 μRIU |
| Linearity Range | ≥ 600 μRIU |
| Response Time | 0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 sec; |
| Cell Volume | 8μL |
Performance of HPLC Liquid Chromatography Instrument
1. Customized high-precision gradient valves, which guarantee extremely high gradient repeatability.
2. Two-stage suspension technology high-pressure constant-flow pump, which improves the system life, reduces the wear and tear of seals, and relieves customers of usage costs.
3. Provide two-way "250mm column+protection column" installation position, to meet the majority of user needs.
4. High precision reflector lens, 1800 lines of shinning grating, to ensure extremely low stray light and a large linear range.
