Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
LC3200

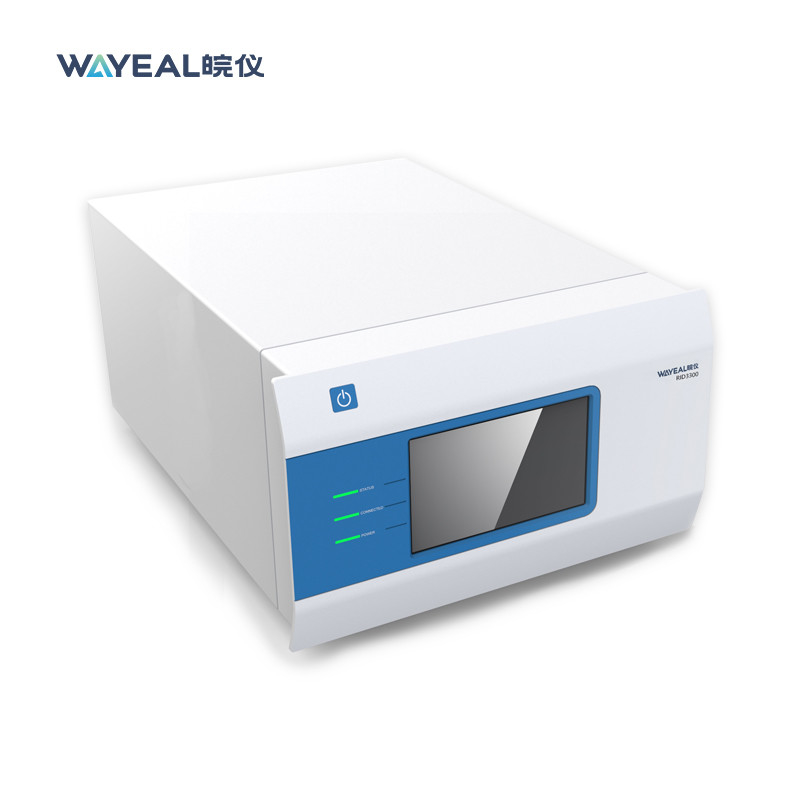

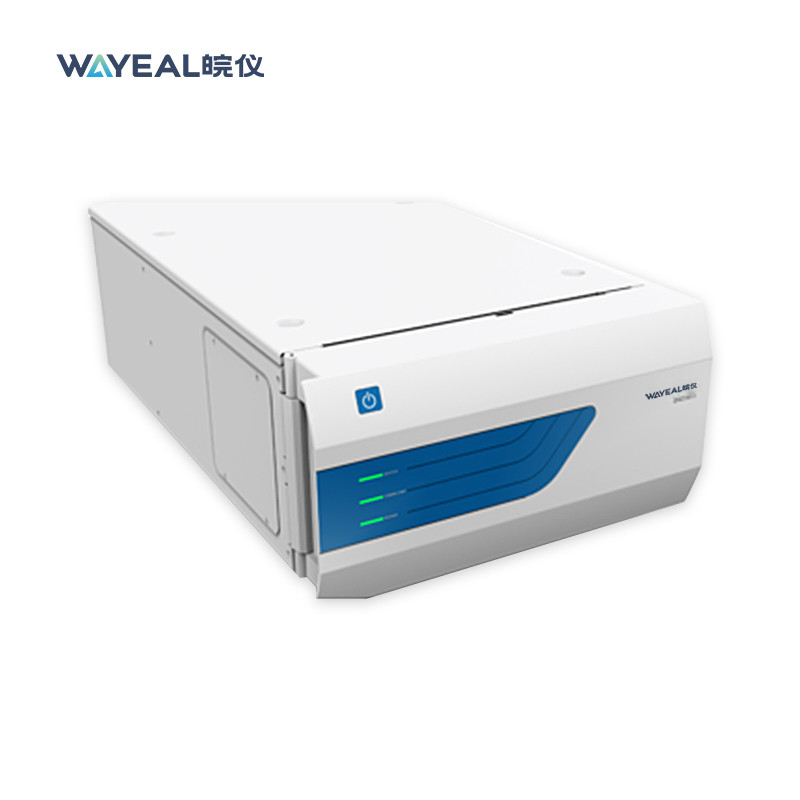

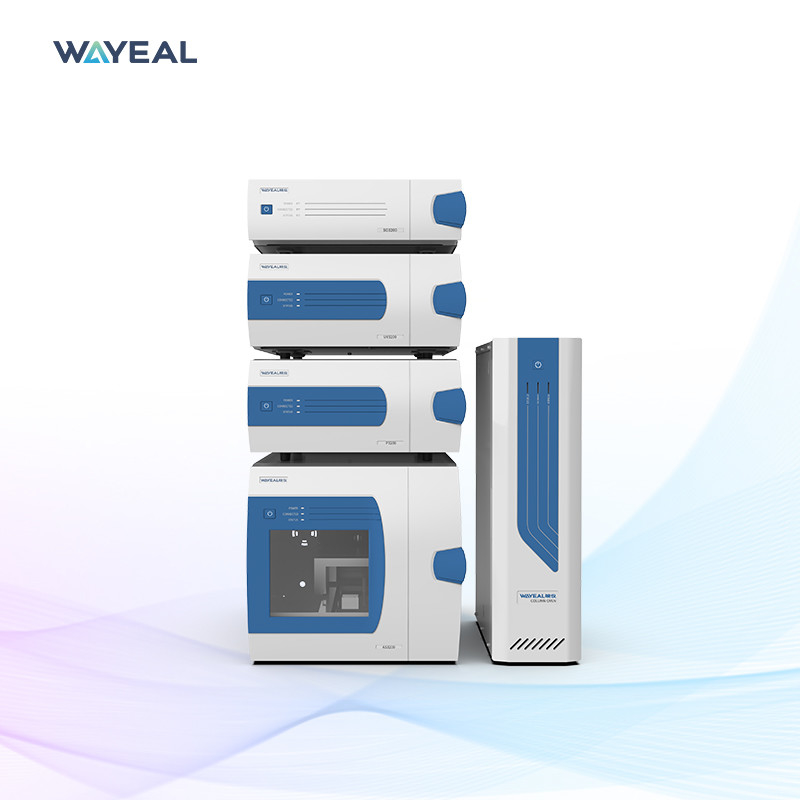

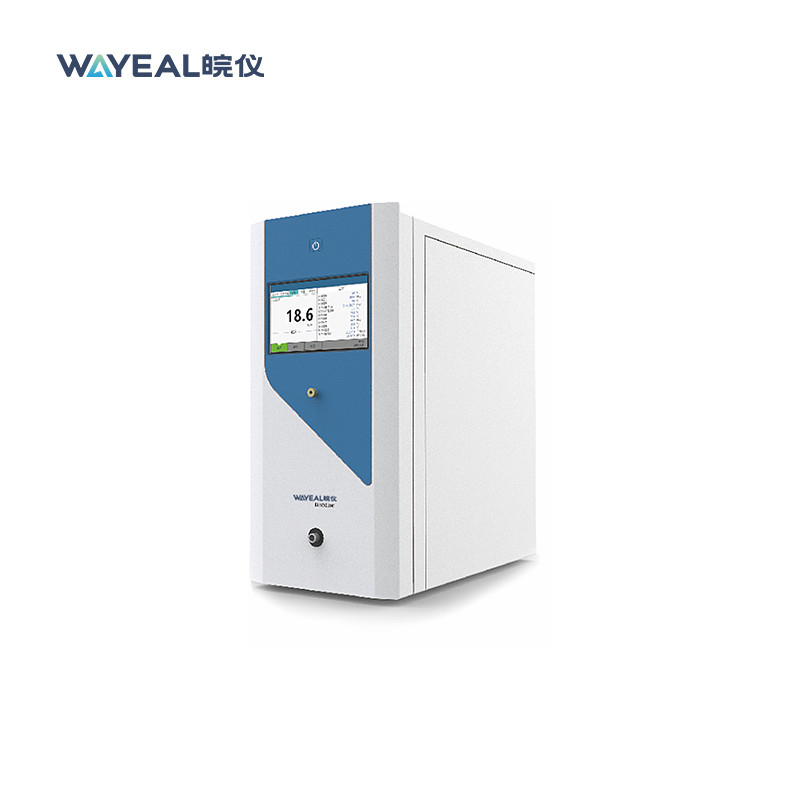

Quantitative Sugar Analysis HPLC System High Performance Liquid Chromatography Instrument With Optional Detectors
Description of HPLC Liquid Chromatography Instrument
High-performance liquid chromatography (HPLC), formerly referred to as high-pressure liquid chromatography, is a technique in analytical chemistry used to separate, identify, and quantify each component in a mixture. It relies on pumps to pass a pressurized liquid solvent containing the sample mixture through a column filled with a solid adsorbent material. Each component in the sample interacts slightly differently with the adsorbent material, causing different flow rates for the different components and leading to the separation of the components as they flow out of the column.
Parameters of HPLC Liquid Chromatogaphy Instrument
| Quantitative Sugar Analysis HPLC System High Performance Liquid Chromatography Instrument With Optional Detectors | |
|
Physical Specification |
|
| Power requirements | 220V,50HZ |
| Ambient temperature | 4-40℃ |
| Ambient humidity | 20-85% relative humidity(non-condensing) |
| System | |
| Qualitative repeatability(Retention time) | RSD≤0.3% |
| Quantitative repeatability(Area) | RSD≤0.6% |
| Pump | |
| Flow rate range | 0.0001-10.000mL/min( increments :0.0001 mL/min) |
| Max operating Pressure | 42MPa |
| Pressure pulsation | <0.1MPa( Test condition: 10MPa , at 1.0ml/min methanol) |
| Flow accuracy | ±0.2%( Test condition: 10MPa , at 1.0ml/min methanol) |
| Flow precision | RSD≤0.06%( Test condition: 10MPa , at 1.0ml/min methanol) |
| Gradient accuracy | ±1% |
| Seal wash | With programmable on-line seal wash module |
| Column Oven | |
| Temperature setting range | 5 °C ~ 85 °C |
| Temperature stability | ≤0.2°C/h |
| Temperature controlling precision | ±0.1 °C |
| Autosampler | |
| Injection Volume Precision |
<0.25%RSD( full loop) ; <0.5%RSD( partial loop) ; <1%RSD( no waste) |
| Linearity | >0.999 |
| Cross Contamination(Carry Over) | <0.01% |
| Sample Capacity | 120 samples( 1.5ml vials) |
| Syringe | 250 μL( Standard, with 500μL,1000μL, 2500μL optionals) |
| Sample Loop | 20μL( Standard, with 50μL, 100μL, 200μL optional) |
| DAD Detector | |
| Noise | 1.5×10-5Au |
| Drift | ≤1×10-3Au/h |
| LOD | 5.0×10-9g/mL (naphthalene/methanol) |
| Wavelength range | 190-800nm |
| Wavelength accuracy | ≤±1 nm |
| Wavelength reproducibility | ≤±0.1 nm |
| Linearity | ≥1.0×104 |
Characteristics of HPLC Liquid Chromatogaphy Instrument
1. Mainstream split design, complete system testing function, to meet most testing needs
2. The new cam curve design adopts electronic pulsation suppression technology and solvent
3. Compression compensation to further reduce pressure fluctuations and ensure higher repeatability of test results.
4. Optional UV, ELSD, FLD and DAD detectors.
