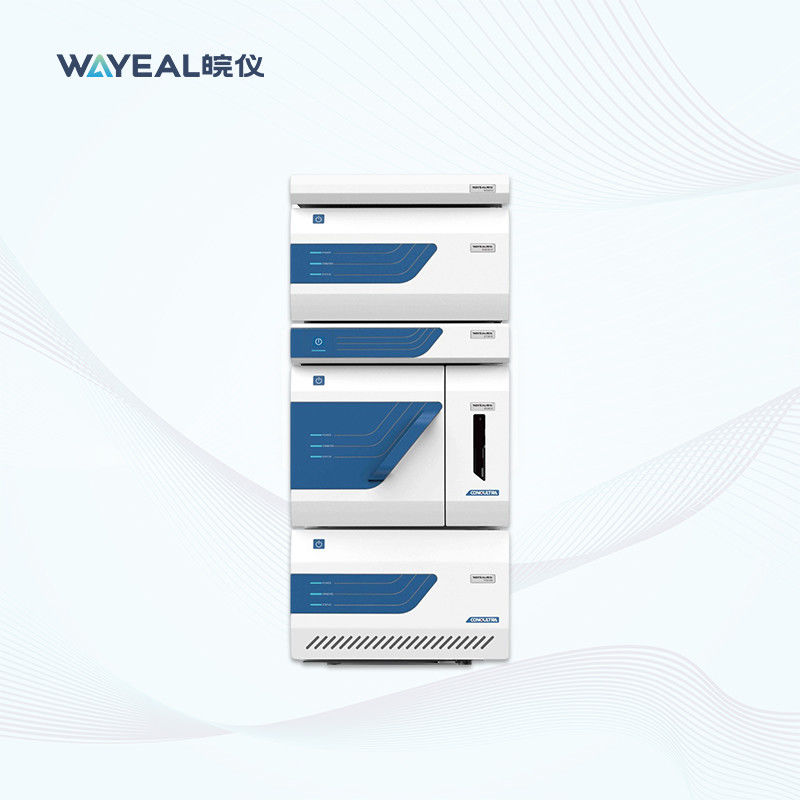

Name: 150MPa UHPLC Ultra High Performance Liquid Chromatography Instrument With Binary Pump
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: LC3600
Price: 15,400.00 USD
Availability: InStock

Home > products > Liquid Chromatography Instrument >

150MPa UHPLC Ultra High Performance Liquid Chromatography Instrument With Binary Pump

150MPa UHPLC Machine

150MPa Ultra High Performance Liquid Chromatography

UHPLC Machine With Binary Pump

Place of Origin:

Anhui, China

Brand Name:

Wayeal

Certification:

ISO, CE

Model Number:

LC3600

Request A Quote

Product Details

Product Name:

UHPLC Liquid Chromatography Instruments

Number Of Arrays:

1024

Warranty:

1 Year

Power Supply:

220V 50HZ

Ambient Temperature:

10-40℃

Light Source:

Deuterium (D2) Lamp

Highlight:

150MPa UHPLC Machine

150MPa Ultra High Performance Liquid Chromatography

UHPLC Machine With Binary Pump

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiation

Packaging Details

Wooden Case

Delivery Time

30 days

Payment Terms

L/C, T/T

Supply Ability

30 Pieces Per Month

LC3400 75MPa Ultra Fast HPLC System High Performance Liquid Chromatography Machine With 108 Injection Bits

Get Best Price

LC3400 75MPa Chromatography Machine Hplc Liquid Chromatography Instrument System

Get Best Price

LC3400 Flow To Needle High Performance Liquid Hplc Chromatography Instrument 220V

Get Best Price

LC3400 62MPa Hplc High Performance Liquid Chromatography Instrument

Get Best Price

+8613586823203

export@wayeal.com.cn

Contact Now

Product Description

150MPa UHPLC Ultra High Performance Liquid Chromatography with Binary Pump

Introduction of High Performance Liquid Chromatography Instrument

The ultra high performance liquid chromatography instrument will complete the work of previous multiple HPLCs in less time, with higher separation, less reagent consumption, more intelligence and convenience, and greatly reduce the management cost of the instrument. It can complete the work of multiple high-performance liquid chromatographs in a shorter time with higher resolution, less reagent consumption, more intelligent and convenient and greatly reducing the management cost of the instrument.

Techncial Data of High Performance Liquid Chromatography Instrument

150MPa UHPLC Ultra High Performance Liquid Chromatography with Binary Pump
Work Power	220V, 50HZ
Ambient Temperature	10-~40°C
Relative Humidity	20-85%
System Indicators
Qualitative Repeatiblity	RSD ≤0.1%
Quantitative Repeatability	RSD ≤0.3%
High Pressure Constant Current Pump
Pump Drive Mode	Linear Motor Pump
Gradient Mode	Binary (4-way solvent)
Flow Setting Range	0.0001~2mL/min
Flow Setting Increment	0.001mL/min
Max Operating Pressure	150MPa
Flow Setting Error	±1.1%
Flow Stability	≤0.09% RSD
Gradient Stability	≤0.02% RSD
Column Oven
Temperature Setting Range	20~90°C
Temperature Stability	± 0.3°C/h
Error of Temperature Setting Value	± 0.5°C
Autosampler
Maximum Withstand Pressure	150MPa
Injection Volumn Range	0.1~10μL
Injection Volume Error	± 0.2μL (Injection Volume 10μL)
Injection Repeatability	＜ 0.3% RSD
Linearity	R≥0.999
Cross-contamination	< 0.001%
Number of Smples	96 Vials (2*48, 2ml)
Temperature Seting Range	4~40 °C
Temperature Stability	± 1°C
Sampling Speed	15s
Ultra-efficient DAD Detector
Baseline Noise	≤10^-6 AU
Baseline Drift	≤0.9x10^-3AU/h
Minimum Test Concentration	2×10^-9g/ml (naphthalene/methanol)
Wavelength Range	190~800nm
Wavelength Indication Error	≤ ±1nm
Wavelength Repeatability	≤ ± 0.1nm
Linear	2.0 AU
Sampling Rate	Up to 100Hz
Number of Arrays	1024
Light Source	Deuterium (D2) Lamp

Performance of High Performance Liquid Chromatography Instrument
1. High-precision ultra-high-pressure infusion unit

2. Low system diffusion volume and optimized flow path

3. Needle-in-flow autosampler with ultra-low injection cycle time

4. Extremely low cross-contamination

5. Active preheat function, fast warming rate

150MPa UHPLC Ultra High Performance Liquid Chromatography Instrument With Binary Pump 0
