Ultra Hplc Equipment High Performance Liquid Chromatography Instrumentation With ELSD Detector
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | UHPLC Liquid Chromatography Instrument | Temperature Setting Range | 20.0-90.0℃ |
---|---|---|---|
Temperature Stability | ±0.3℃/h | Injection Volume Range | 0.1~10.0uL |
Injection Volume Error | ±0.2uL (injection Volume 10uL) | Injection Repeatability | <0.3 %RSD |
High Light | Ultra hplc equipment,ELSD hplc equipment,ELSD high performance liquid chromatography instrumentation |

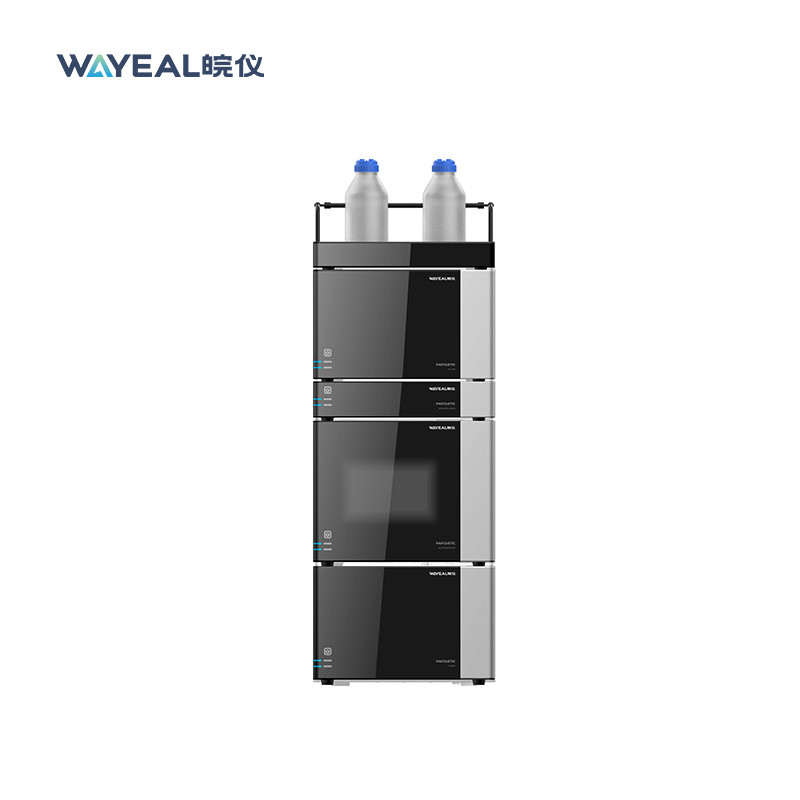

Wayeal UHPLC Ultra High Performance Liquid Chromatography Instrument with DAD ELSD FLD Detector
Product Description
The ultra High performance liquid chromatography instruments is able to perform the work of multiple HPLCs in less time, with higher separation, less reagent consumption, smarter and more convenient, greatly reducing the cost of managing the instrument.The high precision UHP delivery unit, low system diffusion volume, needle-in-flow path design, ultra-low injection cycle time and extremely low cross-contamination provide the UHPLC with higher speed, sensitivity and separation.
Product Parameter
Wayeal UHPLC Ultra High Performance Liquid Chromatography Instrument with DAD ELSD FLD Detector | |
Column Oven | |
Temperature setting range | 20.0-90.0℃ |
Temperature stability | ±0.3℃/h |
Error of temperature setting value | ±0.05℃ |
Autosampler | |
Maximum withstand pressure | 150MPa |
Injection volume range | 0.1~10.0uL |
Injection volume error | ±0.2uL (injection volume 10uL) |
Injection repeatability | <0.3 %RSD |
Linearity | R≥0.999 |
Cross-contamination | <0.001% |
Number of samples | 96 (2*48,2ml) |
Temperature setting range | 4.0~40.0℃ |
Temperature stability | ±1℃ |
Sampling speed | 15S |
Ultra-Efficient Diode Array Detector | |
Baseline noise | ≤7× 10-6 AU |
Baseline drift | ≤0.9× 10-3 AU/h |
Minimum test concentration |
2×10-9g/ml (naphthalene/methanol) |
Wavelength range | 190~800 nm |
Wavelength indication error | ≤±1 nm |
Wavelength repeatability | ≤ ±0.1 nm |
Product Performance
1. Needle-in-flow autosampler with ultra-low injection cycles and very low cross-contamination.
2. SmartLab CDS and SmartLab Solution chromatography workstation software
3. Extremely low injection cycle time
4. Ultra-high efficiency column chamber with active preheat function for extremely fast ramp-up rates
5. Ultra-high efficiency diode array detector with patented liquid-core waveguide circulation technology for lossless transmission of optical energy
Product Application
1. Applications in environmental monitoring
Detection of polycyclic aromatic hydrocarbons (from incomplete combustion of organic fuels); detection of polychlorinated biphenyls (PCBs); detection of pesticide residues (organophosphorus, chlorine, herbicides, etc.); detection of phenols and amines (industrial wastewater from chemicals, fuels, pharmaceuticals, etc.)
2. Applications in the pharmaceutical industry
Drug identification; impurity detection (raw materials, intermediates, by-products, etc.); content determination; chiral separation; pharmacokinetic studies, clinical blood concentration and other testing is very widely used
