High Efficiency HPLC Chromatography Machine Instrumentation In Pharmaceutical

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number LC3000
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 20 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HPLC High Efficiency High Performance Liquid Chromatography Instrument Power Requirements 220V,50HZ
Ambient Temperature 4-40℃ Temperature Stability ≤0.2°C/h
Injection Volume Precision <0.25%RSD( Full Loop) Detector UV/DAD/Fluorescence Detector
High Light

hplc chromatography machine Instrumentation

,

Pharmaceutical hplc chromatography machine

,

hplc chromatography instrumentation Machine

Leave a Message
Product Description

HPLC High Efficiency High Performance Liquid Chromatography Instrument



Product Description

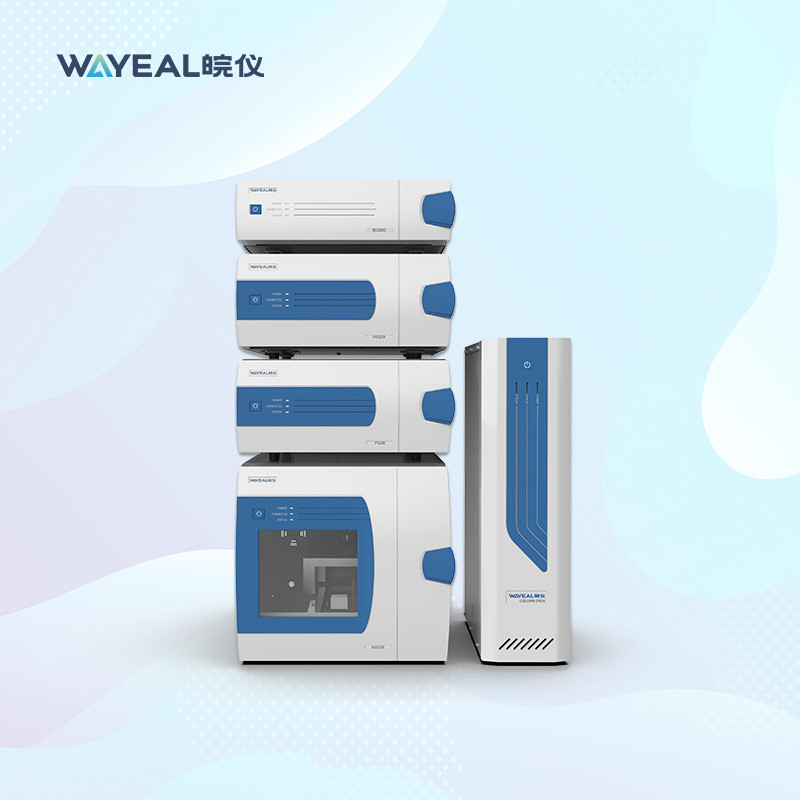

Wayeal LC3000 series high performance liquid chromatograph features high operation stability, high detection sensitivity and modular designing. It has complete system control and detection functions to meet most HPLC applications in pharmaceutical, chemical, environmental, food, laboratories and other fields.



Product Parameters



HPLC High Efficiency High Performance Liquid Chromatography Instrument

Physical Specifications

Power requirements 220V,50HZ
Ambient temperature 4-40℃
System
Qualitative repeatability(Retention time) RSD≤0.3%
Quantitative repeatability(Area) RSD≤0.6%
Pump
Flow rate range 0.0001-10.000mL/min( increments :0.0001 mL/min)
Max operating Pressure 42MPa
Pressure pulsation <0.1MPa( Test condition: 10MPa , at 1.0ml/min methanol)



Product Performance



1. Full temperature range column oven with air bath and solvent preheating design provide constant temperature to ensure high repeatability result.

2. Patented double-stage suspension drive technology and on-line plunger washing make the seal enduring.

3. High precision syringe pump with micro-step drive brings excellent linear and quantitative repeatability.

4. Needle-in-needle and air sweeping design achieve extremely low carryover.





Product Application



Food, medicine, environment, agriculture and scientific research
