Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
Customized System

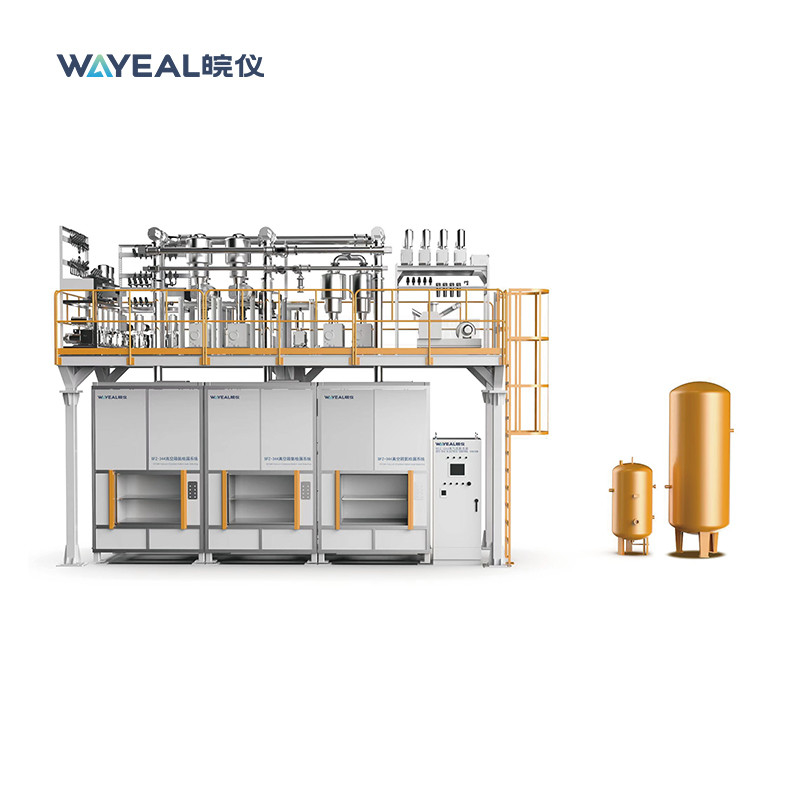

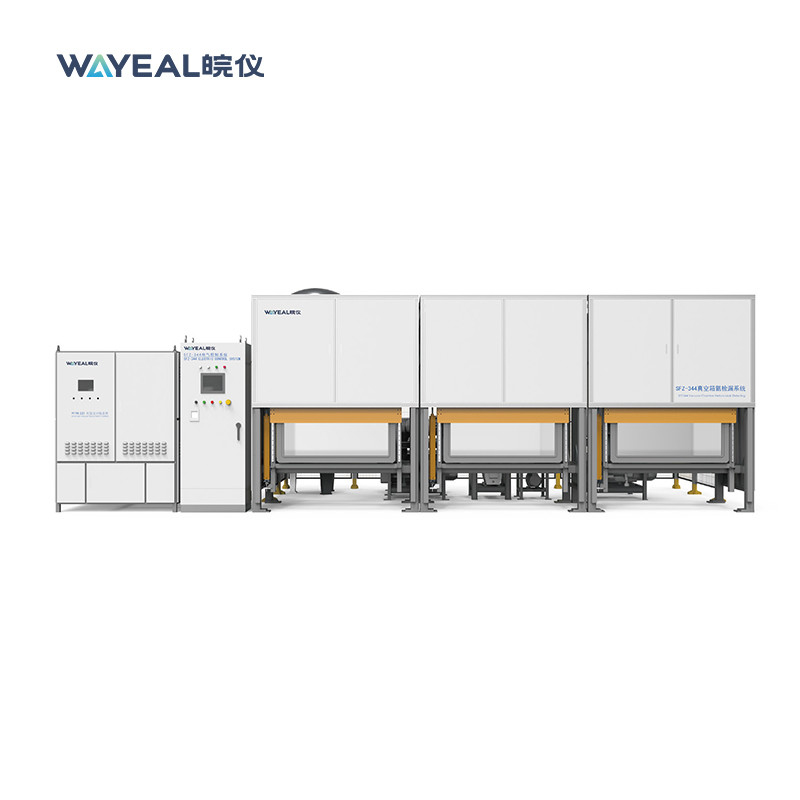

Wayeal Vaccum Chamber Helium Leak Detection System for Home Appliances
Introduction of Vaccum Chamber Helium Leak Detection System
Condenser cores and evaporator cores are subject to dry leak detection. The equipment first uses nitrogen of a specified pressure to test the compressive strength of the inspected workpiece and check large leak for air tightness; then helium of a specified pressure will be filled; manual plugging and unplugging of joints and handling of the workpiece into and out of the vacuum chamber to conduct the helium leak test by the vacuum chamber method; finally the helium in the inspected workpiece will be recovered and recycled.
Parameters of Vaccum Chamber Helium Leak Detection Ssytem
| Wayeal Vaccum Chamber Helium Leak Detection System for Home Appliances | |
| Number of vacuum chammbers | 1~6 |
| Number of test pieces per chammber | 1~6 |
| Vacuum chamber volume | 0.1-10000L, Accept Customized |
| Testing pressure | ≤35Mpa |
| Detector leakge rate | 1*10-4-1*10-9 Pa.m3/s |
| ecycling efficiency | ≤98% |
| Vacuum chammber evacuation pressure | ≤30Pa |
Components of Vaccum Chamber Helium Leak Detection System
Helium-filled recovery section, vacuum chamber leak detection section, leak detector section, and electrical control system.
Features of Vaccum Chamber Helium Leak Detection System
1. The size of vacuum chamber can be customized according to the size of workpiece; the equipment size and layout can be customized according to the workshop;
2. There are multiple optional ways to open the vacuum chamber: drawer type, lifting type, bell jar type, etc., which can be customized;
3. High-end configuration, standardized design and production, and stable and reliable performance;
4. The multi-chamber linkage design can realize flexible production with a production rhythm as high as 20-60S/chamber;
5. Helium can be recovered and recycled with up to 98% recovery rate
6. The system has automatic helium cleaning function, which can quickly and efficiently clean the helium pollution caused by leaking workpieces;
7. The system integrates industrial IoT technology, and the detection process can realize intelligent production such as real-time storage, monitoring and diagnosis;
8. The helium purification system (optional) can be selected to further improve the utilization rate of helium and reduce the production and detection cost;
9. Customized upper computer software development services can be provided according to customers' manufacturing and production MES needs.
