Industrial Analytical HPLC Chromatograph Equipments High Pressure

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number LC3200
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 20 days
Payment Terms L/C, T/T
Supply Ability 30 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Pressure HPLC Cromatografía Equipments Detector DAD Detector
Sampling Volume 0.1-20.0uL (in 0.1μL Increments) Cross-contamination < 0.002%
Sampling Error ±0.2μL (sampling Volume 10μL) Injection Speed 15s
High Light

Analytical HPLC Chromatograph Equipments

,

Analytical Liquid Chromatography Instrument

Leave a Message
Product Description

High Pressure Industrial Analytical HPLC Chromatograph Equipments High Performance Liquid Chromatography Instrument

Product Description



High-performance liquid chromatography or high-pressure liquid chromatography (HPLC) is a chromatographic technique that is used to separate a mixture of compounds in analytical chemistry and biochemistry so as to identify, quantify or purify the individual components. HPLC has the ability to separate and identify compounds that are present in any sample that can be dissolved in a liquid in trace concentrations as low as parts per trillion. Due to this versatility, HPLC is used in a variety of industrial and scientific applications, such as pharmaceutical, environmental, forensics and chemicals.



Product Parameter



High Pressure Industrial Analytical HPLC Chromatograph Equipments High Performance Liquid Chromatography Instrument
Pump System
Gradient Quadratic Low Pressure
Flow Rate Range 0-11.0000mL/min
Min Injection Unit 0.0001mL/min
Flow Rate Error ±0.2%
Flow Rate Repeatability ≤ 0.08% RSD
Gradient Stability < 0.5% RSD
Max Operating Pressure 42MPa
Column Oven
Temperature Range 4 ℃ ~ 85 ℃
Temperature Stability ≤±0.02 ℃
Autosampler
Sampling Volume 0.1-20.0uL (in 0.1μL increments)
Sample Capacity 120 vials, 2ml vial
Linearity r > 0.9999
Cross-contamination < 0.002%
Sampling Error ±0.2μL (sampling volume 10μL)
Sampling Repeatability < 0.3% RSD
Injection Speed 15s
DAD Detector
Wavelength Range 188 - 800 nm
Wavelength Error ≤ ±1.0 nm
Wavelength Repeatability ≤ ±0.1 nm
Baseline Noise 6× 10-5 AU
Drift 1 × 10-3 AU/h
Linearity 2.0 AU



Product Performance


  • Water purification
  • Detection of impurities in pharmaceutical industries
  • Pre-concentration of trace components
  • Ligand-exchange chromatography
  • High-pH anion-exchange chromatography of carbohydrates and oligosaccharides





Product Application


Food, medicine, environment, agriculture and scientific research

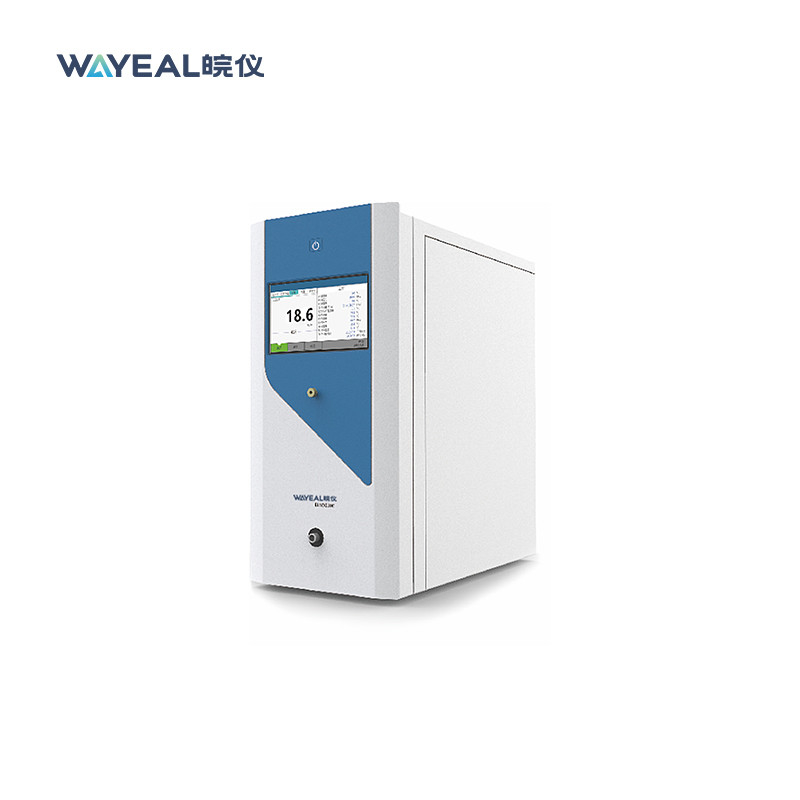

Industrial Analytical HPLC Chromatograph Equipments High Pressure 0

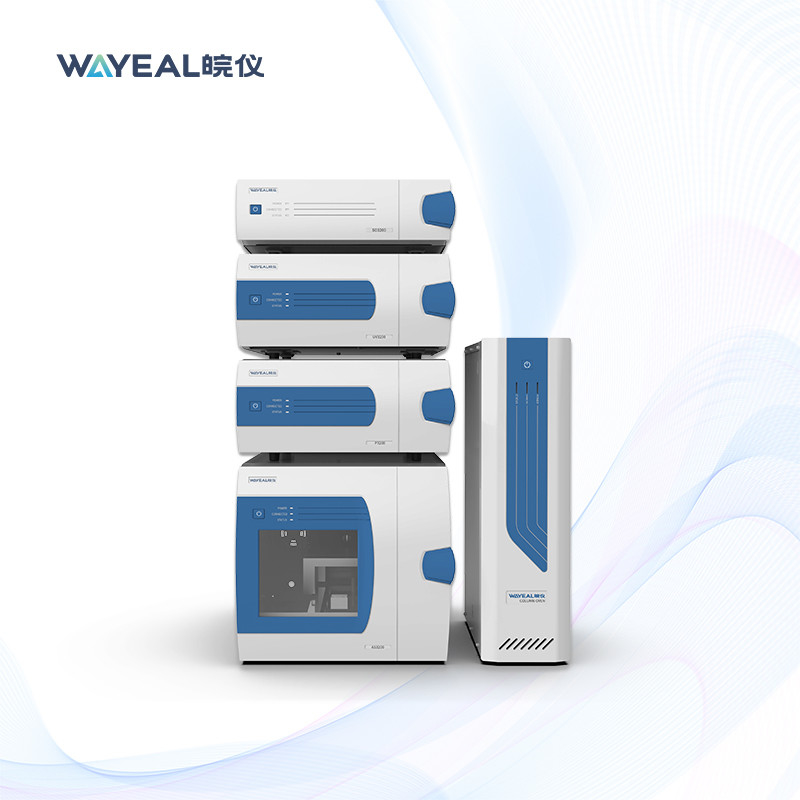

Industrial Analytical HPLC Chromatograph Equipments High Pressure 1

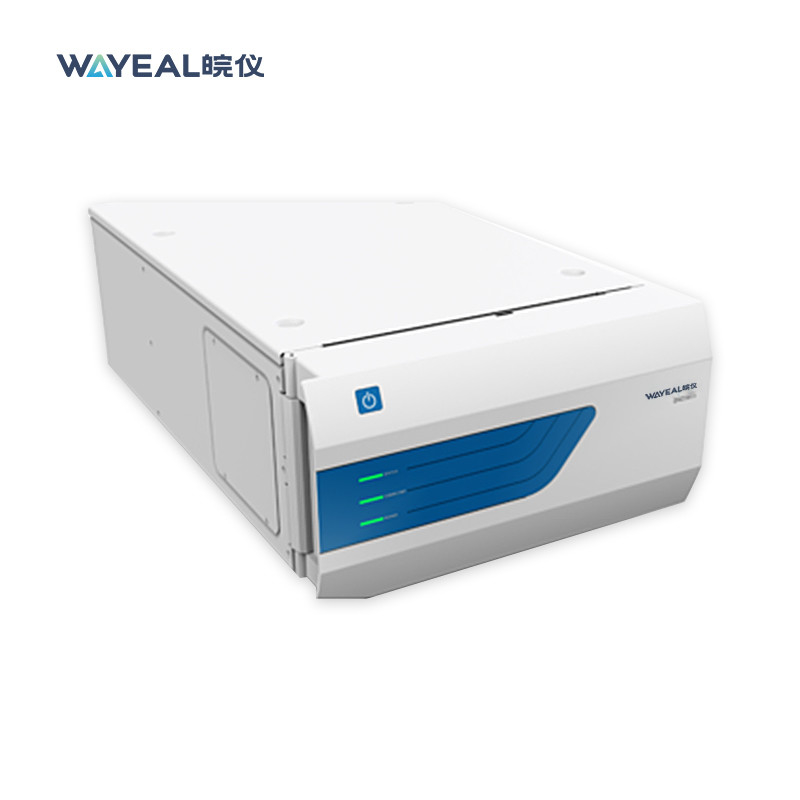

Industrial Analytical HPLC Chromatograph Equipments High Pressure 2

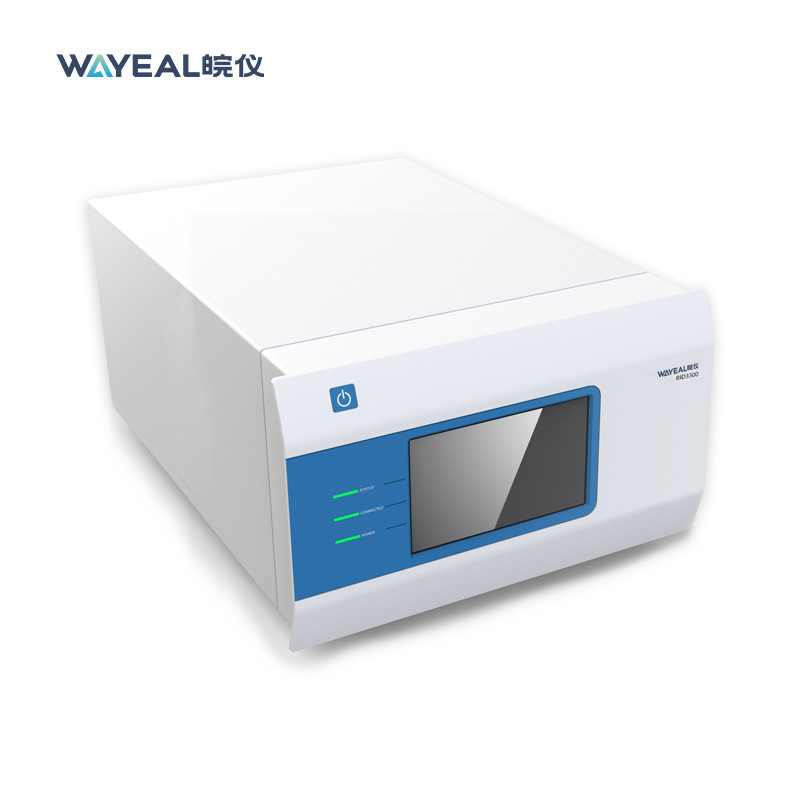

Industrial Analytical HPLC Chromatograph Equipments High Pressure 3
